Lab3 Due Oct 14 2019

Implement an 4-bit program counter datapath using a digital logic simulator.

1. Open the account you created in Lab3 for Circuitverse
2. Launch the simulator and create a project named Program Counter
3. Implement the datapath for fetching instructions and incrementing the program conter:
   • Inputs:
     1. Clock
     2. PC enable: enables/disables PC memory
     3. Mem enable: enables/disables intruction memory
   • Outputs:
     1. Next PC counter value
     2. Instruction: instruction from memory corresponding to the current PC

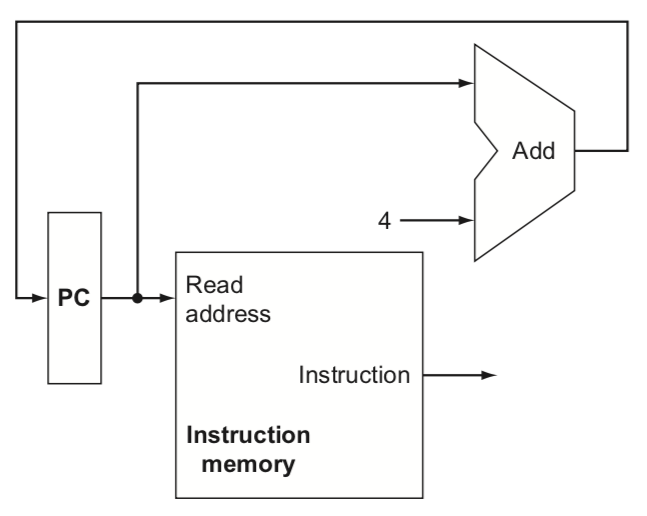

   • Use Figure 4.6 page 253 for the implemetation diagram
4. Type your answers in a Word document
   1. List all the elements in the datapath and name the type of block you used
   2. How many bits do you need for Program counter?
   3. Take a screenshoot of the circuit
5. Submit the Word document via email
